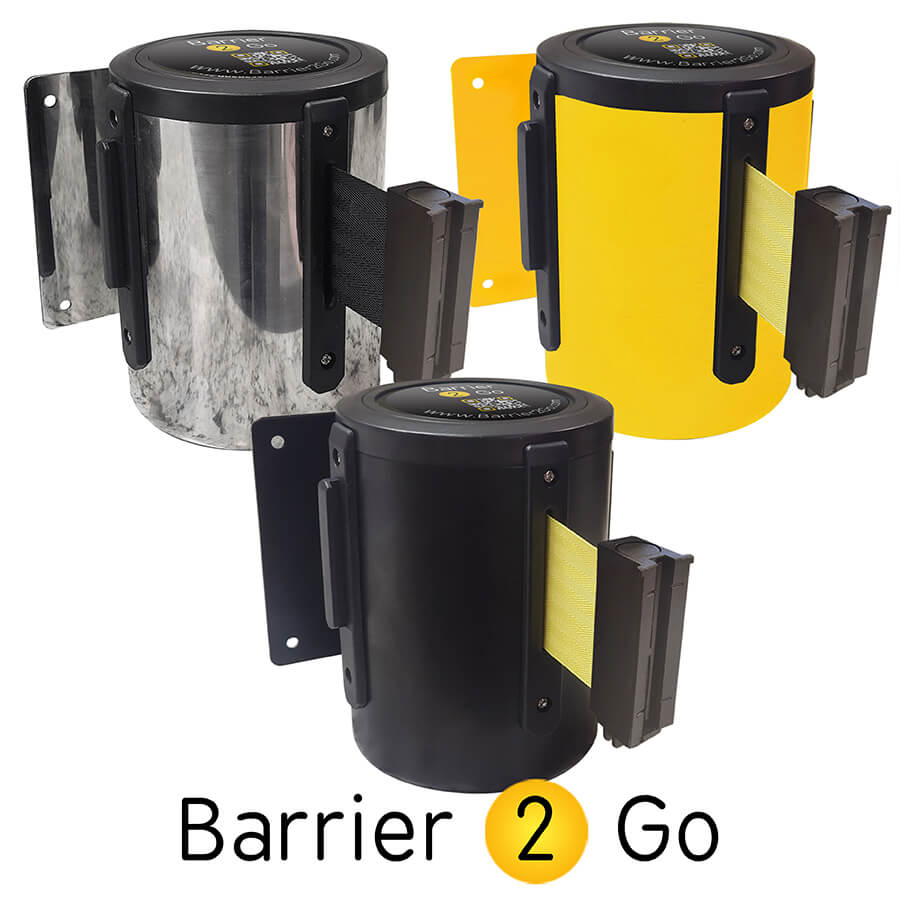

XL Metal Wall Mounted Belt Barrier 6.1m, 7.6m, 9.1m & 10.6m

From: £76.80 inc VAT
£64.00 ex VAT

The extra long metal wall mounted barrier is ideal choice for closing off large aisles, wide corridors, lobbies or work areas. With a 50mm wide belt in lengths between 6.1m and 10.6m, webbing is available in a large assortment of colours, patterns and safety message options. The powder-coated steel housing is available in chrome, black and yellow finishes and the barrier features a slow-retracting braking system and locking belt end. Each standard wall mounted barrier unit comes with a wall clip to slide the end of your belt onto.

  • 1. Choose Your Belt Length
    2. Choose Your Finish
    3. Choose Your Belt Type
    4. Choose Your Belt Design
    4. Choose Your Message Belt

    + £30

    + £36

    + £40

    + £44

    Info: messages are repeated along the belt & printed on both sides, back to space.

    5. Choose Your Mount Type
    6. Choose Your Tape End
    7. Choose Your Clamp Size
    Please Note: Your order will be put on hold until you email us with your chosen clamp size.

    Optional Extra

    • Extra Removable Plate

      From: £22.00 ex VAT
      SKU: WMRP

    Optional Extra

    • Extra Wall Receiver Clip

      From: £7.00 ex VAT
      SKU: B2GRC01

    Optional Extra

    • Steel Receiver Plate

      From: £7.00 ex VAT
      SKU: Steel Plate for BE-BRK

    Optional Extra

    • Extra Steel Receiver Plate

      From: £7.00 ex VAT
      SKU: Plate for BE-BRK

XL Metal Wall Mounted Belt Barrier 6.1m, 7.6m, 9.1m & 10.6m

  • Available in 4 extra-long barrier tape lengths; 6.1m, 7.6m, 9.1m or 10.6m.
  • Offered in black or chrome finishes ideal for customer facing areas, or powder-coated yellow for safety purposes.
  • Wide range of coloured, patterned or safety message webbing options.
  • Custom-printed webbing is available for orders of 5 units or over.
  • This barrier features a braking belt retraction with locking tape end
  • Multiple mounting options are available for a range of fixing solutions including a magnetic mount and tape end for metal surfaces, clamp mounts and sclip tape ends for uprights and a removable barrier mount solution for temporary placement.
  • Other tape end solutions include a panic break solution for fast release and suction cup clip for barriers that need to end with a glass surface.
  • Receiver wall clips are supplied with every standard tape end unit.
  • Speedy next day despatch, subject to stock availability.

Belt Options

Message Belts

Plain Belts

Custom Belts

Minimum order 5 units
Lead time approx. 3 weeks from signed off artwork
(allow for 4 weeks in total to be safe)

Get a Quote

Belt Options

Plain Belts

Message Belts

Custom Belts

Minimum order 5 units
Lead time approx. 3 weeks from signed off artwork
(Allow for 4 weeks in total to be safe)

Get a Quote

Mounting Options

Magnetic

A popular choice for our customers who wish to attach their barrier to a metal surface easily without the need for installation. Add and remove as needed quickly and easily.

Removable

The removable mount offers a great solution for temporary placement of your barrier. Once you have screwed the wall plate you cam slide your barrier in and out as required allowing for multiple temporary locations. Extra wall plates and receiver clips are available for extra location placement.

Clamp

The clamp mount offers a great solution for mounting your belt barrier on pillars, poles or other uprights. A selection of clamp sizes are available to accommodate a wide variety of needs.

Standard

The standard wall mount is the default and most popular mounting method for this belt barrier.  The unit is designed to be attached to the wall securely with 4 screws through the pack plate.

Tape End Options

Magnetic

The magnetic tape end is designed to allow you to attach the belt end to metal surface easily without the need to screw anything into the wall. Steel receiver wall plates are also available separately if required.

S Clip

The S Clip tape end is a great solution for lines that end with an upright, simply loop the belt around a warehouse rack, concrete post or other type of upright and then simply clip it back on the the belt for easy and secure fastening.

Panic Break

For areas where you need a quick release solution, the magnetic tape end and steel wall plate is combined to create a perfect solution for quick clearance in an emergency situation. Wall plates are available to purchase separately should you need them in multiple locations.

Suction Cup

If your barrier line ends at a window or other glass surface you can utilise the glass suction cup tape end for easy and flexible attachment.

Standard

The standard tape is the default option for all of our barriers. It features a handy locking mechanism and connects with a receiver clip that is screwed onto the wall. Extra wall clips are also available should you need them in more than one location.

XL Metal Wall Mounted Belt Barrier Specs

Case Material Metal – Steel
Connectivity 1 way
Tape Length 6.1m, 7.6m, 9.1m & 10.6m
Tape Width 50mm
Height 138mm
Width 143mm
Depth 110mm
Wall Mount Included
End Wall Clip Included
Weight 1.2kg
Environment Not suitable for outdoor use or maritime environments

Please Note: due to the extra long lengths of the belts on this unit, they may bow in the middle.
